BMS Wire Harness
E4A-CAS-00006-00

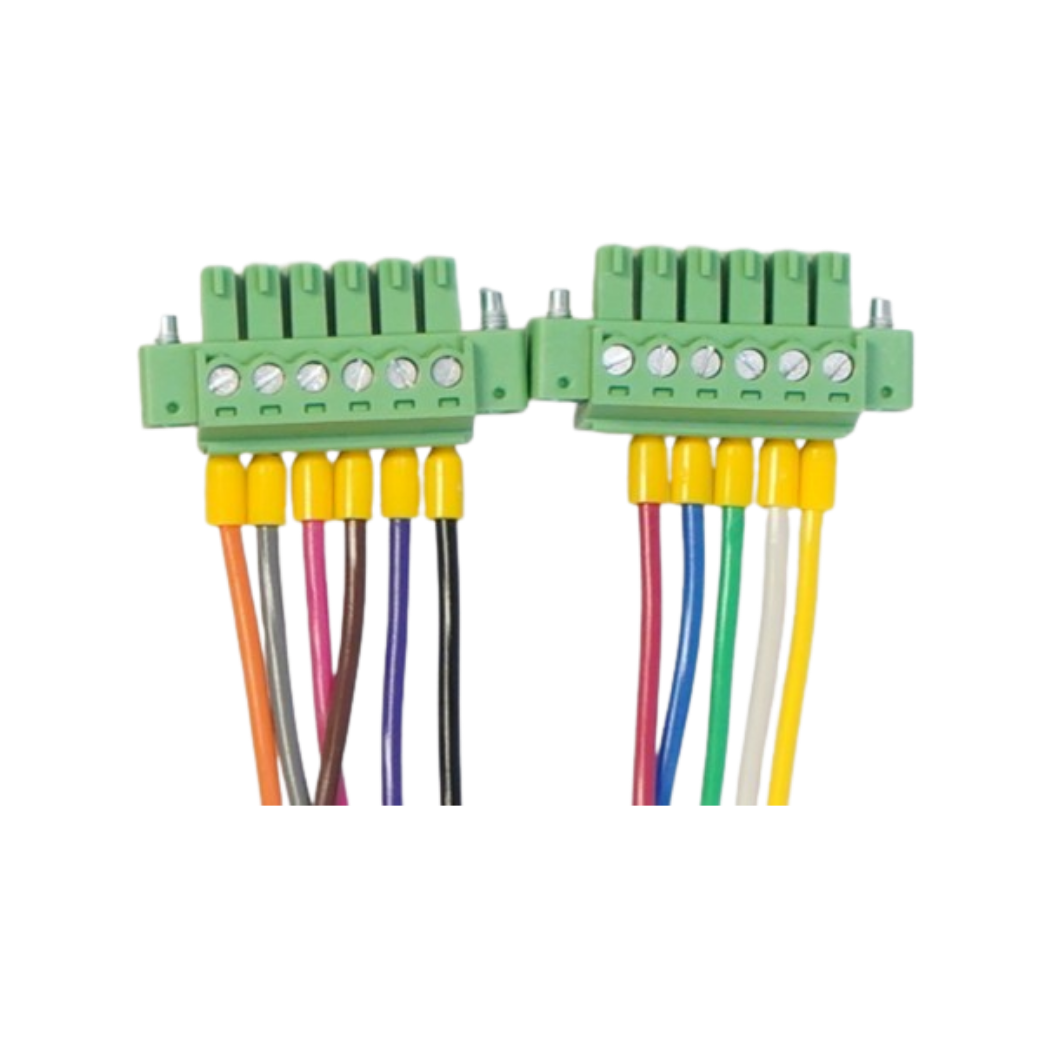

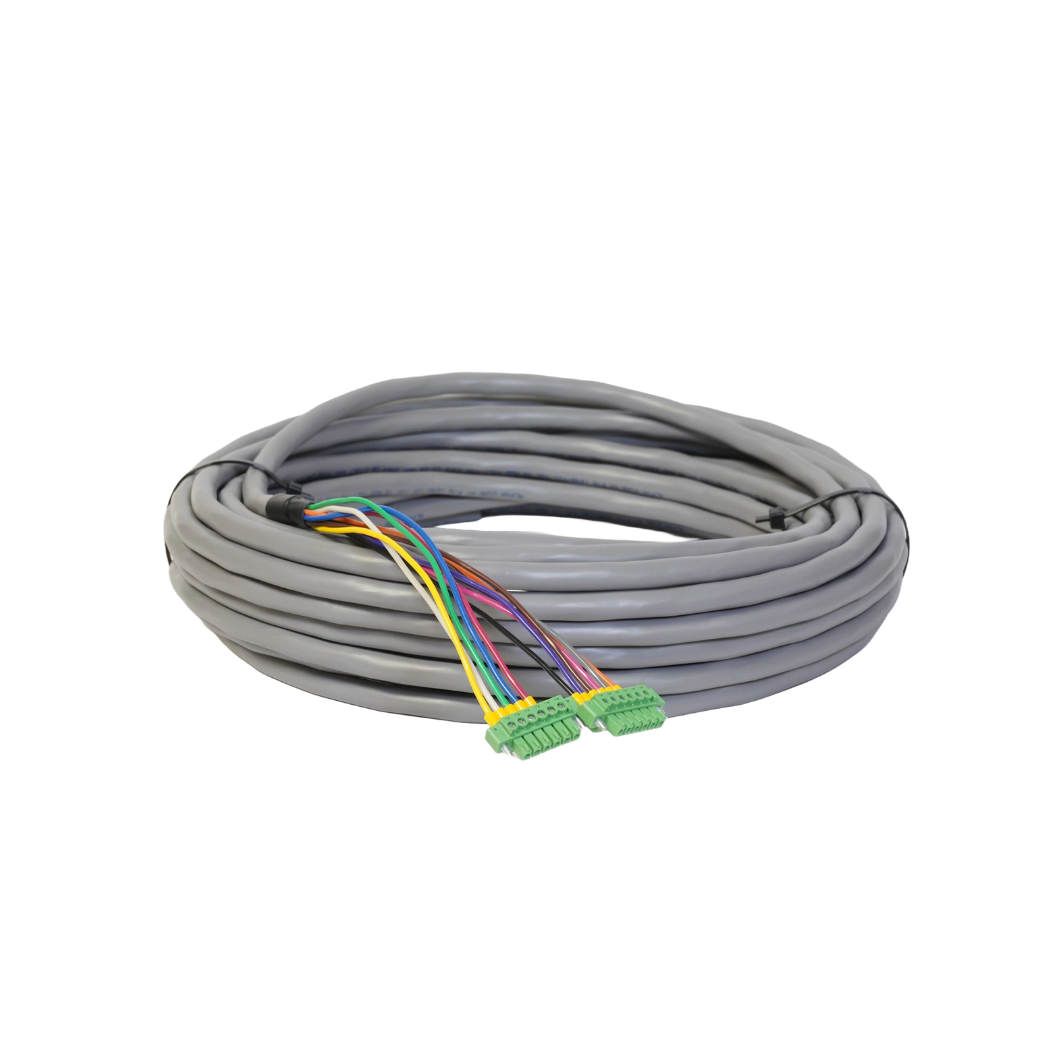

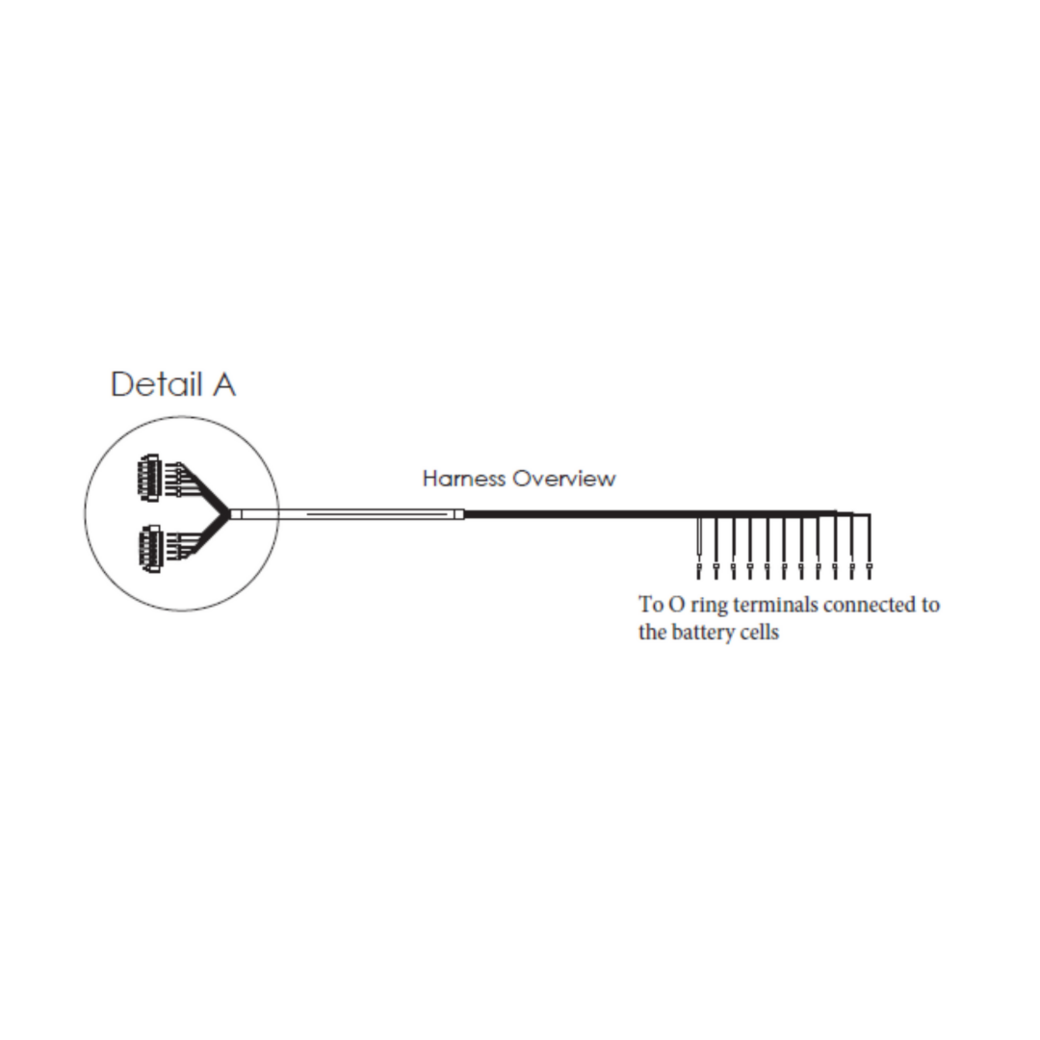

The E4A-CAS-00006-00 wire harness is designed to connect the BMS-1001-TH to Ni-CAD or Lead-Acid cells within a battery bank. It enables the integration of individual cell terminals with the BMS wireless sensor for accurate voltage measurement. Upon request, the end user may opt to replace the blunt-cut cable end on the right side with an O-ring terminal for improved connectivity.
Design Notes:
Wire Harness uses 11 of 12 conductors, conductor 12 is cut as per harness.
All cable and wiring components as found in BOM are CSA/ESA approved materials.
Installation Notes:
Wire harness leads can be coiled and secured using tie wraps/zip ties based on installer discretion.
Wire leads can be field trimmed as required by the installer.
Technical Specification
| Item No |
Part Number
|
Description | QTY |
| 1 |
E4A-CWR-00004-1
|
12 Conductor Multi-Conductor Cable Slate 18 AWG | 15.30m/harness |
| 2 |
E4A-CON-00040-1
|
Yellow Wire Ferrule | 11 |
| 3 |
E4A-CON-00017-1
|
6 Position Terminal Block Female Plug | 2 |
| 4 |
E4A-ADH-00001-1
|
Heat Shrink Tube | 1 |

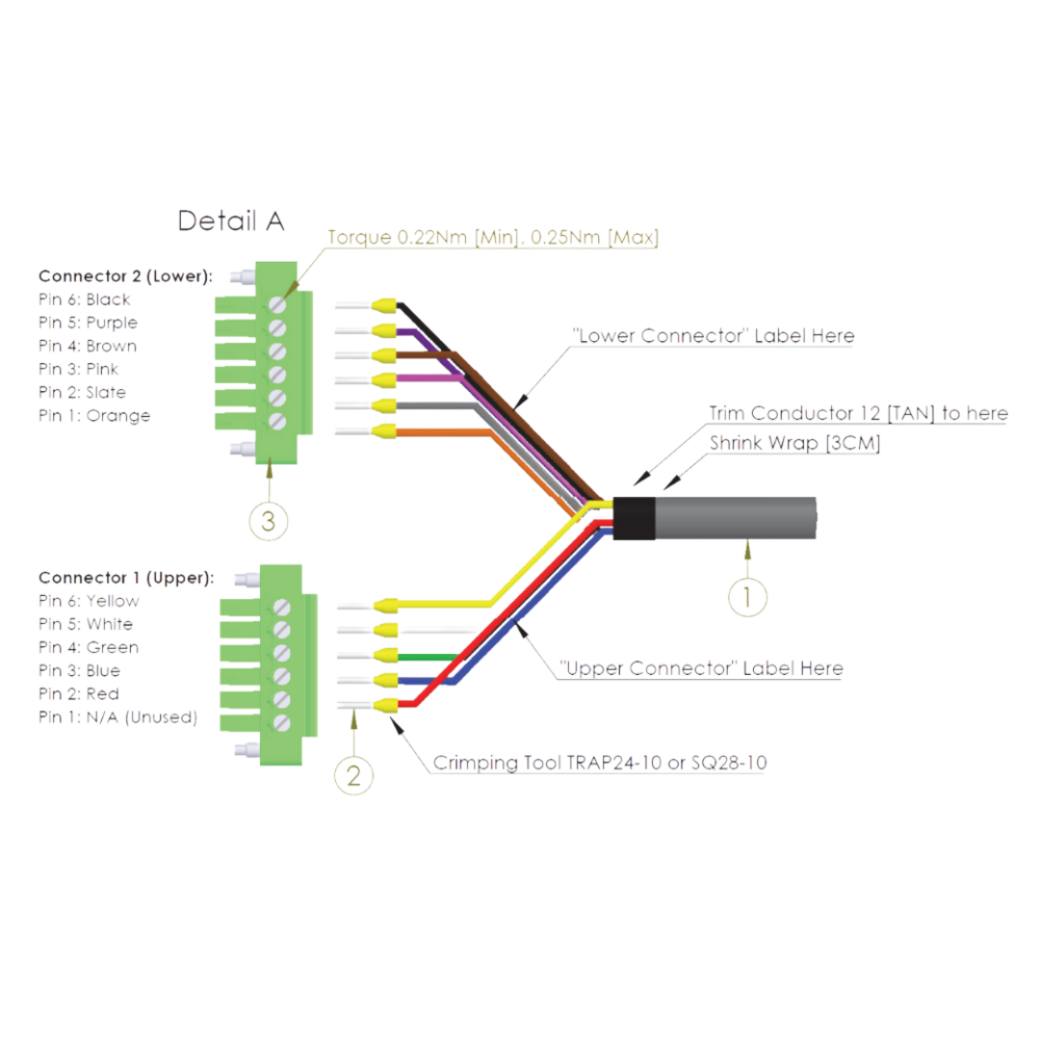

| Relative Cell Position | Connector-Pin | Wire Jacket Color |
| Cell 10 (+) | 1-2 | RED |
| Cell 9 (+) | 1-3 | BLUE |
| Cell 8 (+) | 1-4 | GREEN |
| Cell 7(+) | 1-5 | WHITE |
| Cell 6 (+) | 1-6 | YELLOW |
| Cell 5 (+) | 2-1 | ORANGE |
| Cell 4 (+) | 2-2 | SLATE |
| Cell 3 (+) | 2-3 | PINK |
| Cell 2 (+) | 2-4 | BROWN |
| Cell 1 (+) | 2-5 | PURPLE |
| Cell 1 (-) | 2-6 | BLACK |
